Separate mixing and grinding units

Dead-space-free mixing

Hydraulic discharge flap for fast unloading

Operator-friendly swivelling touch-screen control

Optional CO2/LN2 cooling

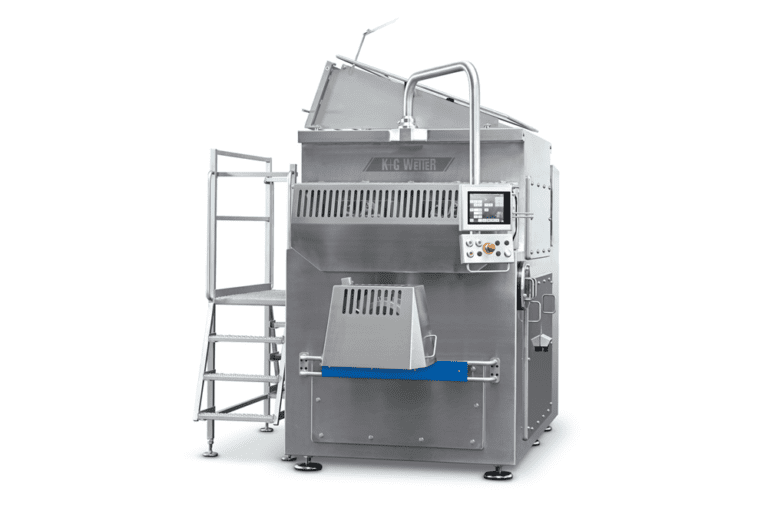

Mixer Grinder MW U200

K+G Wetter GmbH

The patented MW U200 Mixer Grinder from K+G Wetter GmbH is a new generation mixer grinder that works much more efficiently, even without a worm in the mixer section. The Mixer Grinder becomes the optimal solution for standardised products such as burgers and raw sausage products, but also for a wide range of convenience products. Available in 1300L and 1850L capacities; 900kg & 1300kg.

Mixing section without worm eliminates dead space during production, saves energy, cost and time

Two mixer paddle shafts are each driven by an independent geared motor

Co-rotation and counter-rotation are possible in each direction

Rotational speeds can be varied for optimum product quality

Full mixing section width discharge gate for rapid emptying

Gravity feed into converging worm which feeds the 200mm diameter grinder unit head

Throughput fresh chilled meat - 11 Tonnes per hour

GALLERY

© K+G Wetter GmbH.

SUITABLE APPLICATIONS

DOWNLOADS

EXPERT OPINION

Sam Crooks

Technical Sales Manager

“One of the keys to the success of the MW U200 is that the mixer and grinder are completely separate from each other. This ensures that in the first step all the material is mixed into a uniform quality homogenous mass before the grinding process takes place. In the mixer, there are no dead-spaces and a hydraulic discharge flap enables fast emptying of the mixer hopper into the grinder section. Synchronous and reverse rotation is possible in both directions and simple operation is achieved via a swivelling touchscreen. Contact us for more information.”

ADDITIONAL PRODUCT INFORMATION

K+G Wetter Mixer Grinder MW U200

The mixer section and grinder section are completely separated which is a pioneering solution. The meat worm feeder unit is the underlying innovation behind the new mixer grinder generation from K+G Wetter GmbH. The new production system ensures a gentle material feed, minor warming and no smearing. This results in a high-grade, homogenous product. The machine is easy to clean as the bearing unit and food are separated and is also easy to operate due to a state-of-the-art pivoting touchscreen to facilitate flexible operation of the machine.

Recipe management software allows reproducible and consistent mixing and grinding
CutVision quality management software is used in all steps, allowing the production process to be recorded, analysed, and saved
By opening the hydraulically operated discharge gate the hopper is quickly and fully emptied through two discharge ports with no detrimental effect on product
Electric controller and hydraulic unit are integrated into the machine body

ENQUIRY

Contact us for more information on this or any other product we offer.
