1
Easy operation and monitoring with ‘Weber Power Control’.
2
Weber Hygienic Design allows for easy cleaning.
3
Involute blade slices up to 2,000 slices per minute.
4
Automatic product loading.

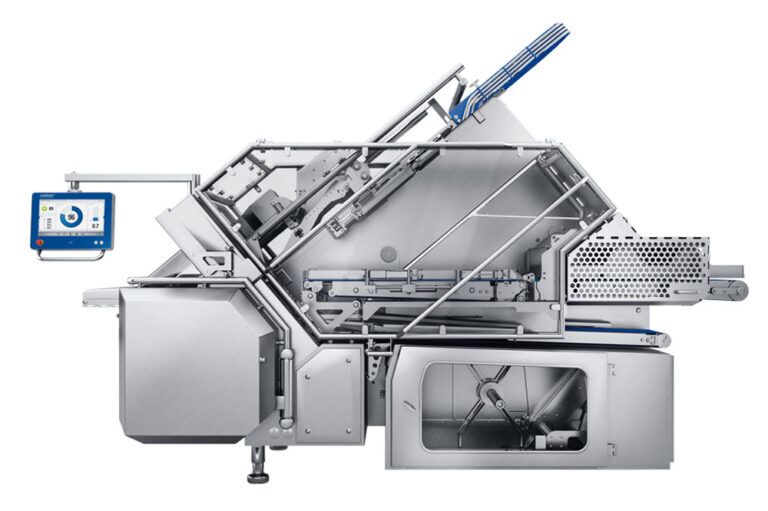

804 Slicer
Weber
The Weber 804 Slicer is the most efficient slicer in its class, offering all-around performance. The involute blade system cuts products up to 1,700mm in length and cuts up to 2000rpm.
Automatic, central loading for quick and repeatable reload
Top product guides for additional control
Automatic height and width adjustment of the product throat
Carrier unit for maximum product lengths of 1700 mm
Hygienic design
configurations
CCL Configuration
Slicer with integrated jump conveyors (CCU) for portioning and separate mobile transport conveyor. Slicer cutting to thickness, but with the option to retrofit a reactive check weighing or proactive scanning system.
MLC Configuration
Slicer with CCU and including checkweigher (CCW) for reactive feedback weight control. With marking conveyor for diversion of off weights / first cuts to one side for manual correction at the packing station. Proactive scanning system also available or can be retrofitted.
SLC Configuration
Machine with CCU with checkweigher and rocker system for diversion of off weights for manual correction on to an upper reject conveyor. Good portions transferred via MOV conveyor to be manually packed. Proactive scanning system also available or can be retrofitted.
RCS WPR Configuration
Slicing line with CCU, checkweigher and rocker. Including buffering and pick and place system for automatic loading of packaging machine.
MCS Configuration
Slicing line with CCU, checkweigher and rocker. Including automatic infeeding system to put portions directly into pack.
GALLERY
© Weber Maschinenbau GmbH Breidenbach.
EXPERT OPINION
Tom Foran
Divisional Manager – Slicing and Packaging Line Solutions
“The Weber 804 Slicer with involute blade system offers the ideal solution for lower capacity retail and high-quality premium bacon lines. Contact us for more information.”
ADDITIONAL PRODUCT INFORMATION
804 Slicer
Technical Data | |
|---|---|
Blade Type | Involute |
Max Slicing Speed (RPM) | 2000 |
Product Throat Height Options (mm) | 180 |
Product Throat Width (mm) | 400 |
Product Length Options (mm) | 1200 / 1700 |
Loading Type | Automatic |
Available Options |
|---|
Stacking CCU |
Waferthin CCU |
Interleaver |
SprayTech |
Folding Bar |
Idle Cut Head |
Portion Designer |
Vario Grippers |
