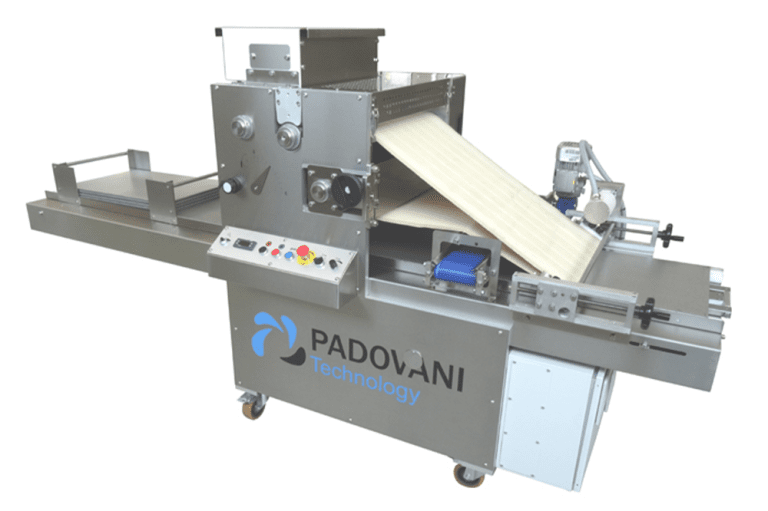

Rotary Moulding Machine RW2 – RW3
Easy mould change
The hopper can be tilted to the side, and locking or unlocking it is as simple as using quick hooks, with no need for any additional tools.
New knife regulation system
The knife moves in alignment with the mould surface throughout its adjustment range, ensuring precision forming. An indicator on a graduated scale on the control side lets you easily monitor the knife's position.
Perfect forming
The machine allows you to stop/start the movement of the trays independently from the forming head via an electromechanical connection operated from the control panel. This feature enables single-operator operation during startup or recipe testing phases, as all adjustments for perfect biscuit forming can be made easily. Once ready for production, you can activate the deposit on trays.
Fully integrated control panel
You can adjust the speed using the potentiometer conveniently located on the panel, which controls the inverter. Additionally, a digital display on the panel allows you to monitor the working speed at any time.
Increased production capacity
With a maximum production speed of up to 12 trays per minute, it can achieve an hourly productivity of up to 400 kg/h, depending on the specific format being produced.
New WASH system
As customer demands for enhanced hygiene standards continue to rise, Padovani Technology have developed a practical and simple system for washing the grooved roller of the rotary machine model RW2 and RW3. The WASH system is a practical and straightforward system that allows you to effortlessly wash and disinfect the grooved roller, significantly reducing machine cleaning times.
Code | Trays dimensions [mm] | Power installed [kW] | Packaging dimensions (aprox) [mm] | Gross Weight [kg] | Trays per minute | MAX production [kg/h] |
|---|---|---|---|---|---|---|
RW 2 | W 500 (max) x L 600-800 | 1,5 | 2750 x 1250 x H1650 | 650 | Min 3 – Max 12 | 300 |
RW 3 | W 600 (max) x L 600-800 | 2 | 2750 x 1350 x H1650 | 730 | Min 3 – Max 12 | 450 |
Decorating Devices
Padovani Technology offers a range of decorating devices tailored for integration with their Rotary Moulding machines. From the Glazing Unit to the Sugar Sprinkler and more, these devices provide flexibility for biscuit customisation. Enhance the productivity of your biscuit manufacturing operations With Padovani Technology’s decorating devices.
Washover Unit
Sugar Sprinkler
Marmalade/Jam Depositor
The Marmalade/Jam Depositor is a top-filling dosing machine designed to apply marmalade or chocolate onto freshly formed biscuits. It features a piston dosing head that draws marmalade from the hopper and dispenses it through specialised spouts onto the biscuits.
Ink printer
The ink printer transfers pre-defined designs onto biscuits using food ink print technology. Multiple devices can be used for multi-colour printing, enabling biscuit manufacturers to create visually appealing products with intricate designs and branding.
