1

Optional belt washing and drying system

2

Touch control panel with recipe management

3

Large loading and unloading zone (90cm) for loading of international standard fish blocks

Continuous Radio Frequency Tempering Unit TRF

SAIREM

The Continuous Radio Frequency Tempering Unit TRF from SAIREM provides continuous tempering and is optimised for fish blocks. Radio frequency (RF) is generated by an RF generator. Energy moves from one electrode to the other inside the unit and passes through the treated material. RF energy penetrates deep into the material, heating products at a slower rate than microwave technology. This is ideal for delicate products and those with regular size and shape.

Designed to process heat-sensitive materials

Available with power from 30 to 100 kw

Tempering capacities from 1 t/h to 3 t/h

EQUIPMENT MODELS

The TRF range of continuous radio frequency tempering units are available in 2 different configurations. Tempering capacities are variable and depend on the final required temperature, product type, product shape and level of fat.

TRF30

TRF30

With variable power up to 30kw, the TRF30 is capable of processing up to 1 t/h.

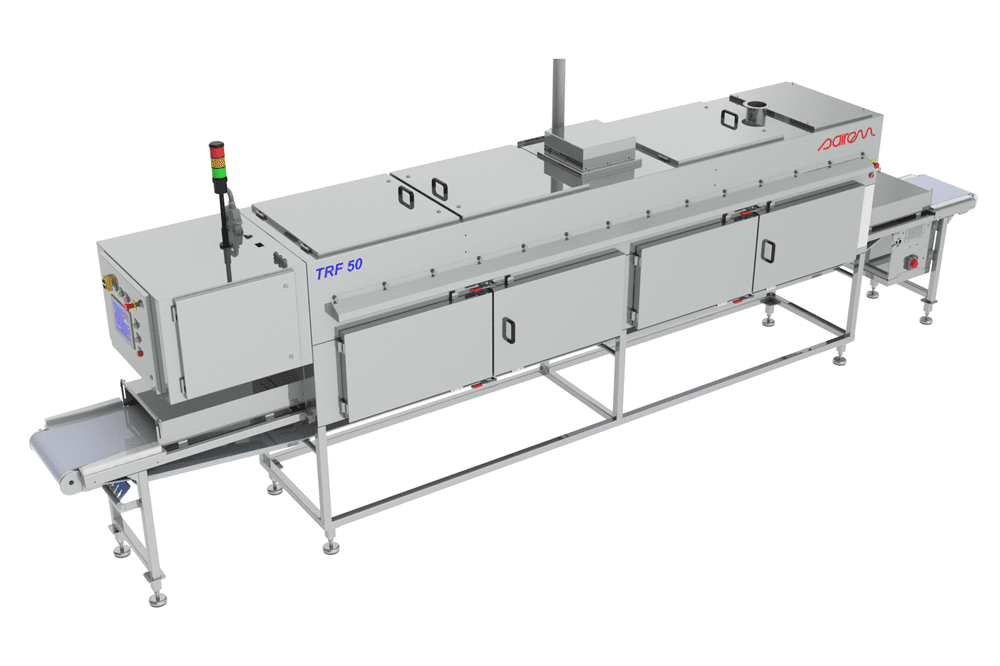

TRF50

TRF50

With variable power up to 50kw, the TRF50 is capable of processing up to 1,9 t/h. Conveyor belt width: 480mm.

TRF100

TRF100

With variable power up to 100kw, the TRF100 is capable of processing up to 3 t/h. Conveyor belt width: 900mm.

GALLERY

© SAIREM.

SUITABLE APPLICATIONS

DOWNLOADS

EXPERT OPINION

James Radcliffe

Divisional Manager

“SAIREM’s microwave and radio-frequency equipment is optimised to the specific requirements of a given application, offering high thermal efficiency and shorter processing times to ensure better preservation of the organoleptic properties. Typically, payback can be of the order of several months, subject to existing drip losses which are sometimes overlooked. Contact us for more information.”

ADDITIONAL PRODUCT INFORMATION

Continuous Radio Frequency Tempering Units TRF

Microwave and radio-frequency technologies are perfectly suited to improving thermal processing in the food industry. Heat generation is almost instantaneous and allows for a perfectly controlled process, thanks to rapid, uniform heating. Almost all of the energy is transferred to the treated product, drastically minimising energy losses.

For over 40 years, SAIREM’s dedicated research and development team have been developing optimum microwave and radio-frequency solutions for customers specific defrosting and tempering requirements.

Touch control panel with recipe management
Hot air adjunction up to 100°C
Air extraction
Max. product height 220mm
Temperature sensor
Designed to process heat-sensitive materials

SAIREM’s tempering by microwave and radio-frequency technologies offer many advantages compared to traditional processes.

Speed

Traditional tempering methods may take hours or even days to temper products. Microwave tempering takes up to 10 minutes. Radio-frequency (RF) can take up to 30 - 40 minutes and is suited to very sensitive products, e.g. fish.

Savings

The speed and uniformity offered by microwave and radio frequency processes eliminates product drip losses and degradation, preventing weight loss (drip loss may be up to 10%) thereby significantly improving raw material yield. Payback on investment can be as short as 6 to 12 months.

Safety

The potential for the growth of pathogenic bacteria as part of a conventional chilled tempering process, is eliminated due to the rapidity of microwave and radio-frequency tempering processes. In addition, SAIREM’s equipment is fully interlocked, and fitted with sensors to detect and prevent microwave/radio-frequency leakage.

Quality

Unlike some typical chilled tempering processes, SAIREM’s microwave and radio frequency tempering methods help preserve all organoleptic properties of your food products. Colour is improved, and weight, flavour, and nutritional attributes are maintained. Temperature homogeneity of +/- 1°C is achievable throughout a product.

Previous slide

Next slide

ENQUIRY

Contact us for more information on this or any other product we offer.
