HPI Injectors
Henneken
The HPI Injector range from Henneken is offered in widths from 350mm to 650mm with numerous configurations optimising pressure, speed, and temperature. The injectors can be used with all bone-in and boneless primals for pork, bacon, beef, lamb, chicken, and fish applications. The comprehensive range ensures there is an option to suit all customers, from retail butchers right through to medium and large-scale processing operations. The injectors feature an efficient brine filtration system and brine agitation for heavy ingredients.
Walking beam & belt conveyor systems
Servo-drive technology for maximum performance
Comprehensive needle configurations to suit all products
Precision injecting/curing for bone-in and boneless products
Accurate and consistent results, every time
Data capture and storage for full traceability
Options available to further enhance performance
EQUIPMENT MODELS
HPI 300
The HPI 300 is the entry-level model of the Henneken Injector series and is suitable for bone-in or boneless products. The machine is compact and can be moved easily on wheels – it is ideal for small operations which need maximum flexibility.
HPI 350
The HPI 350 is Henneken’s entry-level industrial model for small and medium capacities. The speed is adjustable from 15 to 55 strokes per minute. Options include: Touch Panel, brine tank, anti-sedimentation system and double pipe heat exchanger.

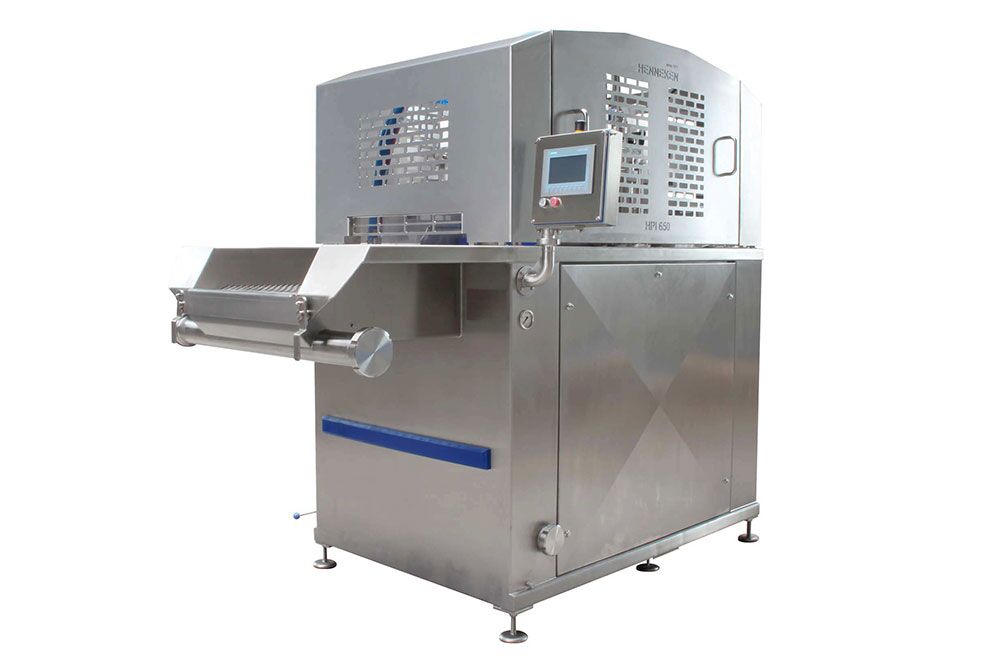

HPI 450/650
The Henneken HPI 450 and HPI 650 injectors are designed for high volume production environments and are equipped with either walking beam or belt conveyor. Machines are supplied with comprehensive brine filtration systems to guarantee consistent results.
HPI 450 S & 650 S
The HPI 450S & 650S injectors are designed for maximum performance with servo-controlled belt drives. They are produced for the precision injection of poultry or fish and can easily be integrated with downstream IQF lines. Options include double pipe heat exchanger, brine cooling and anti-sedimentation system.
GALLERY
© Henneken Tumbler.
EXPERT OPINION
James Radcliffe
Divisional Manager – Curing to Clipping
“Henneken’s continuous development has resulted in a wide range of high-performance, well-designed, reliable injecting systems with options to suit all customers, from retail butchers through to medium and large-scale processing operations. Injectors can be integrated into your existing production line or supplied as part of an Interfood comprehensive line solution. Contact us for more information.”
ADDITIONAL PRODUCT INFORMATION
Pneumatic springed needles
The pressure of the single pneumatic springed needles can be adjusted steplessly. All needles are easily removal and there for are easily cleaned and maintained. There is also an option of different types of needles in various sizes in order to meet your exact requirements for different products.
- Suitable for bone-in and boneless products
- Robust industrial design
- Easily maintained
- Suitable for all kinds of meat
