1
Easy operation and monitoring with ‘Weber Power Control’.
2
Automatically adjustable product throat height (200mm).
3
Automatic product loading.
905 Slicer
Weber
The Weber 905 Slicer has the widest cutting throat on the market at 620mm, combining high capacity with high performance. The slicer can be combined with all Weber automation modules to meet the most demanding production requirements.
620mm extra wide cutting throat
High-speed, 2000 rpm
Hygienic design
Intuitive operation with the Weber Power Control
Weber idle cutting technology and automatic slicing gap adjustment
configurations
CCL Configuration
Slicer with integrated jump conveyors (CCU) for portioning and separate mobile transport conveyor. Slicer cutting to thickness, but with the option to retrofit a reactive check weighing or proactive scanning system.
MLC Configuration
Slicer with CCU and including checkweigher (CCW) for reactive feedback weight control. With marking conveyor for diversion of off weights / first cuts to one side for manual correction at the packing station. Proactive scanning system also available or can be retrofitted.
SLC Configuration
Machine with CCU with checkweigher and rocker system for diversion of off weights for manual correction on to an upper reject conveyor. Good portions transferred via MOV conveyor to be manually packed. Proactive scanning system also available or can be retrofitted.

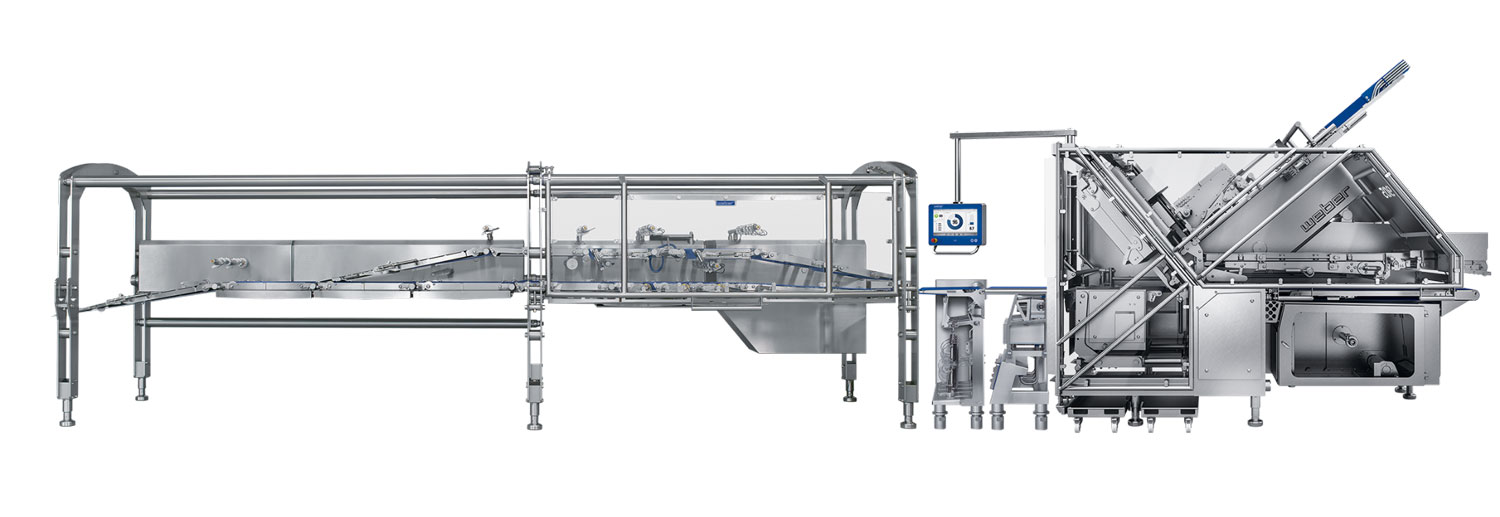

MCS Configuration
Slicing line with CCU, checkweigher and rocker. Including automatic infeeding system to put portions directly into pack.
RCS WPR Configuration
Slicing line with CCU, checkweigher and rocker. Including buffering and pick and place system for automatic loading of packaging machine.
GALLERY
© Weber Maschinenbau GmbH Breidenbach.
EXPERT OPINION
Tom Foran
Divisional Manager – Slicing and Packaging Line Solutions
“The 905 Slicer is Weber’s largest slicer, combining a cutting width of up 630mm with a maximum product length of 1600mm at speeds of up 2000rpm. Contact us for more information.”
ADDITIONAL PRODUCT INFORMATION
905 Slicer
Technical Data | |
|---|---|
Blade Type | Involute |
Max Slicing Speed (RPM) | 2000 |
Product Throat Height Options (mm) | 200 |
Product Throat Width (mm) | 620 |
Product Length Options (mm) | 1200 / 1600 / Endless (3200) |
Loading Type | Automatic |
Available Options |
|---|
Stacking CCU |
Waferthin CCU |
Interleaver |
SprayTech |
Folding Bar |
Idle Cut Head |
Portion Designer |
Vario Grippers |
ENQUIRY
Contact us for more information on this or any other product we offer.
